How to Assemble the Bicystar KB-BL05 Balance Bike
Use this model-specific guide to assemble the Bicystar KB-BL05 balance bike in a clear, step-by-step order. Follow each step carefully, check every connection, and use the PDF manual or support email if you need help.
Quick Summary

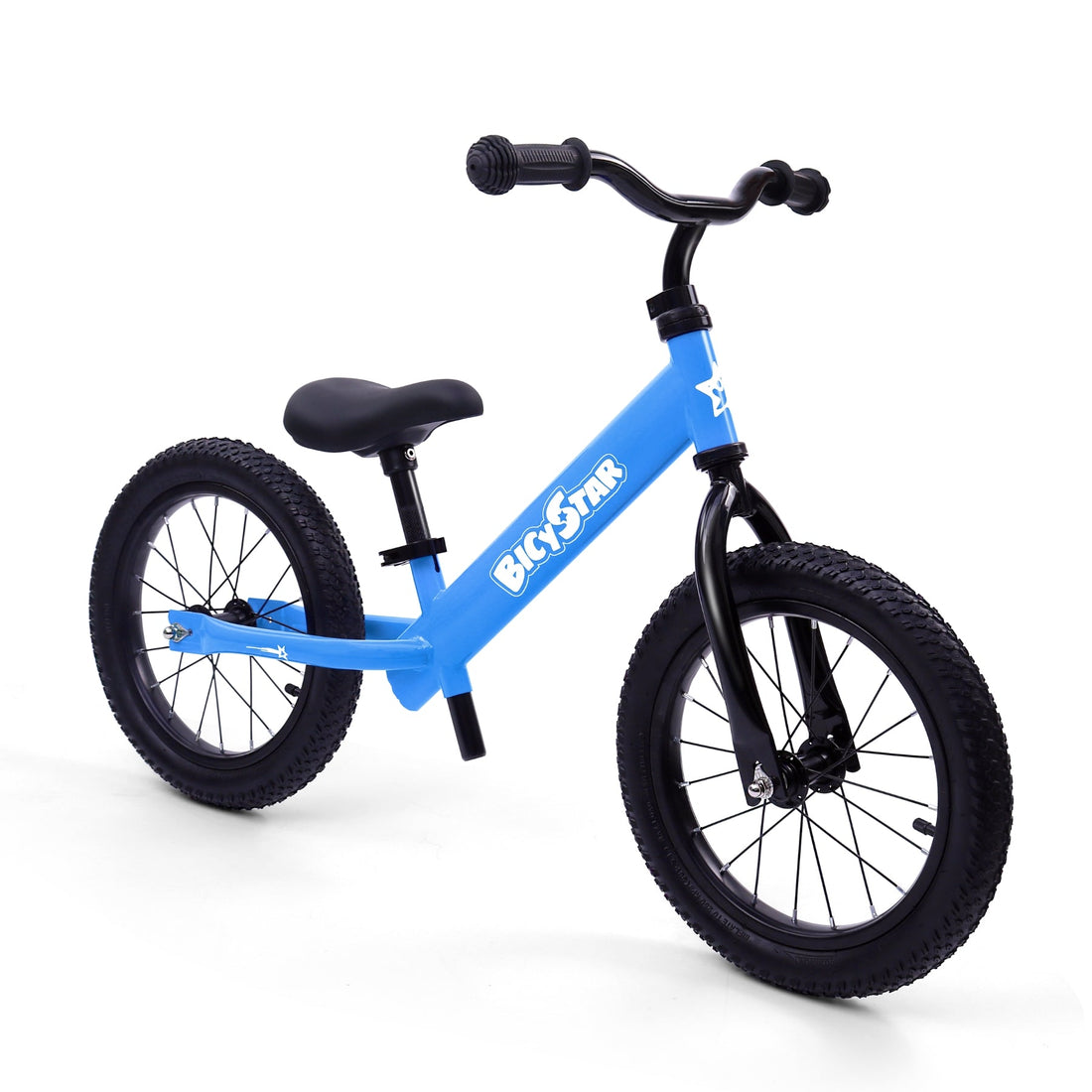

The Bicystar KB-BL05 is a 14"/16" balance bike designed for children ages 3–8. It features air tires and an adjustable seat ranging. Assembly covers four main steps: assembling the fork into the frame, installing the handlebar, attaching both wheels, and fitting the seat post.
The front and rear wheels are identical, so the same installation method applies to both. Most parents complete the full assembly in under 20 minutes using only the included tools.
Watch the video below before you begin — it covers every step including seat height adjustment. If any part does not fit or feels wrong, stop and re-check alignment before applying force. The PDF manual and support email are available at the bottom of this page.
Product Snapshot
- Model KB-BL05
- Category Balance Bike
- Wheel Size 14"/16"
- Ages 3–8 years
- Tires Air tires
- Frame Warranty 8-year frame warranty
Assembly Video
Watch the full assembly walkthrough before you begin. It covers every step including fork assembly, wheel installation, and seat height adjustment.
Parts List
Check all parts before you start. Every item below should be in the box.
| Part | Description | Qty |
|---|---|---|
| A | Handlebar | 1 |
| B | Seat | 1 |
| C | Fork | 1 |
| D | Frame | 1 |
| E | Wheels (front and rear are identical) | 2 |
| F | Bushings | 2 |
| G | Headset | 1 |
| H | Stem Spacer | 1 |
| I | Stem Clamp | 1 |
| J | Assembly Tools | 1 set |
Missing a part? Stop assembly and contact support with your model number, shipping address, and a photo or video of the issue before continuing.
Assembly Steps
Follow these 4 steps in order. Each step matches the assembly video and the model-specific PDF manual.
Assemble the Fork and Frame
The bushings must be fully seated inside the head tube before you insert the fork. Skipping this will prevent the fork from turning correctly once assembled.
- Slide the stem spacer (H) down over the top end of the fork steerer tube.
- Insert both bushings (F) into the top and bottom openings of the head tube on the frame.
- Insert the fork up through the bottom of the head tube until the steerer tube protrudes through the top.
Install the Handlebar
- Slide the headset (G) down over the fork steerer tube, on top of the head tube.
- Slide the stem clamp (I) down over the fork steerer tube, on top of the headset.
- Insert the handlebar into the fork steerer tube at least 2 inches deep.
- Align the handlebar so it is straight and centered with the front fork.
- Fasten the stem clamp screw by turning it clockwise until the handlebar is held firmly in place.
Attach the Wheels
Important: The front and rear wheels are identical — either wheel can be used on either end. The installation method is the same for both.
Front Wheel
- Remove the axle bolts and retention devices from the front wheel.
- Insert the wheel axle between the fork tubes so the axle fits into the slots at the end of the fork blades.
- Install the axle retention devices on each side of the axle. Make sure the hook part of each retention device fits correctly into the hole in the fork tube.
- Install the axle bolts on each side.
- Use the adjustable wrench to tighten both axle bolts securely.
Rear Wheel
- Install the rear wheel using the same steps as the front wheel.
- Confirm both axle bolts are tightened and both retention device hooks are seated correctly.
Install the Seat
Set the seat height before locking the clamp.
- Insert the seat post into the seat tube on the frame.
- Slide the post to the correct height for your child. See the Seat Height Guide below.
- Fasten the seat clamp by turning the screw clockwise until snug.
- Press the lever firmly down to lock the seat post in place.
Seat Height Guide
Getting the seat height right before the first ride makes a real difference. A correctly set seat lets your child push off the ground comfortably and build balance and confidence naturally.
How to Find the Right Seat Height
When your child sits on the seat, they should be able to place both feet fully flat on the ground with a slight bend at the knee. This bend gives them the push-off control they need to walk, run, and eventually glide.
Set the seat 0.5" to 1" below your child's inseam measurement. This produces the optimal knee bend for balance bike riding.
PDF User Manual
Download the full KB-BL05 PDF manual for part diagrams, model-specific setup details, safety guidelines, tire pressure recommendations, and official reference steps.
FAQ
What is the difference between the KB-BL05 and the KB-BL04?
What order do the headset and stem clamp go on the fork?
How deep does the handlebar need to be inserted?
Are the front and rear wheels different?
What does the retention device do and how do I install it correctly?
What is the correct seat height for my child?
How much of the seat post needs to stay inside the frame?
Do the tires need to be inflated before the first ride?
What should I do if a part is missing or damaged?
Support
If you need help with the KB-BL05 — whether assembling, adjusting seat height, or troubleshooting — contact Bicystar support at anita@bicystar.com.
Please include your model number, shipping address, and photos or video of the issue so support can review it quickly.
Trust / Warranty Note
The KB-BL05 balance bike includes an 8-year frame warranty. Warranty support is model-specific. For warranty claims, contact anita@bicystar.com with your model number and proof of purchase.
